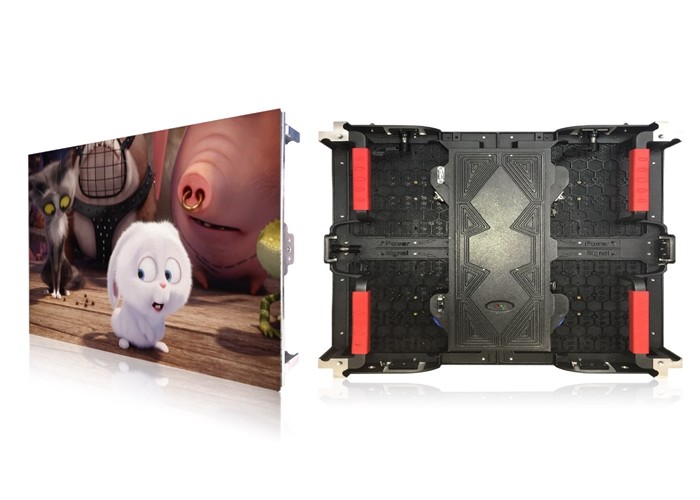

1R1G1B Stage Led Screen , P3.91 Led Video Display Panels High Resolution

Brand Name : sol colur

Model Number : p3.91

Certification : EMC、IP65、FCC

Place of Origin : SHENZHEN CHINA

MOQ : 1pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000 Square Meters/ per momth

Delivery Time : 15-20days

Packaging Details : Flight Case , Wooden Box , Carton

Product Name : P3.91

Pixel pitch : 3.91mm

Scan mode : 16S

Thickness : 100mm

Pixel configuration : 1R1G1B

Contact Now

P3.91 stage background led display high resolution 64*64 led display

Detailed Product Description:
MOdule size: 250*250mm Thickness: 100mm

Control method: Synchronization Color: 1R1G1B

Module number: Stage P3.91 Package mode: Nationstar SMD1921

Warranty: 2 Years Pixel resolution: 64dots(W)*64dots(H)

Product Parameters:

Unit Module

 Item Parameter
Model Number SF-SS3.91-16S-A
Module size 250mm*250mm
Pixel pitch 3.91mm
Pixels Density 65536dots/m2
Pixel configuration 1R1G1B
Package mode Nationstar SMD1921
Pixel resolution 64dots(W)*64dots(H)
Max Power 38W
Module thickness 13.41mm
Weight 0.58kg
Drive type Constant drive
Scan mode 16S
Port type Hard connection of 4 sets of signals
Brightness of white balance ≥4300cd/m2

Cabinet

 Dimension 500mm*500mm
Monomer Module Number 4pcs
Power supply 5V/60A*1pcs
Thermal discharge fan 2pcs
Pixel per cabinet 128mm*128mm
Best viewing distance 10M～30M
Best viewing angle 110°(W) 110°(H)
Temperature

storage:-35℃～+85℃

working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 100mm

Power

 Working voltage AC220V±10%
Average Power consumption 200W/㎡
Max.Power consumption ≤400W/㎡
Current ≤20mA(single LED)

Control system

 CPU Pentium4 or above P4 or can more
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Power switch Automatic switch


Advantage:

1.The die casting aluminum box is of high strength, strong toughness and high precision.
2.Waterproof - all waterproof performance, withstand rainstorm test, IP65 or above protection.
3.High intensity and can be adjusted, so can meet the request of the customers according the application environment.
4.Quick - box connection adopts quick lock, arc lock and fast installation speed.

Project Show:
1R1G1B Stage Led Screen , P3.91 Led Video Display Panels High Resolution
